ELA

Fast and sensitive, this hybrid-pixel electron detector enables advanced data collection in EELS and 4D STEM.

Request a quote

DECTRIS ELA® electron-counting detector offers best-in-class performance in terms of detector noise, frame rate, and dynamic range. It can handle a probe current well over 100 pA, and it simultaneously captures weak and intense reflections to enable advanced diffraction and imaging studies. In addition, it allows for fast elemental mapping in one go, which is especially crucial when working with beam-sensitive materials.

ELA hybrid-pixel detector is specifically optimized for Electron Energy Loss Spectroscopy (EELS) and Four-Dimensional Scanning Transmission Electron Microscopy (4D STEM).

  • Captures everything: thanks to its dead-time-free readout, ELA detector collects all the information your sample can deliver.
  • Fast: ELA detector’s high frame and count rates reduce experiment time significantly and allow for increased instrument throughput.
  • Easy: ELA detector’s Application Programming Interface (API) enables straightforward integration into any modern data pipeline or electron microscopy suite.

Detector Specifications*

Number of pixels (W x H)

1,028 x 512

Active area (W x H)

[

mm²

]

77.1 x 38.4

Pixel size (W x H)

[

µm²

]

75 x 75

Sensor material

Silicon (Si)

Energy range

[

keV

]

30 - 300

Frame rate (max.)

[

Hz

]

2,250 (16-bit); 4,500 (8-bit)

Frame rate (ROI, max.)

[

Hz

]

9,000 (16-bit); 18,000 (8-bit)

Count rate (max.)

[

el/s/pixel

]

107

Detective Quantum Efficiency, DQE(0)

0.81 at 100 kV, 0.85 at 200 kV

Detector mounting

On-axis, post spectrometer

*All specifications are subject to change without notice.
All technical documentation is available here.

ELA Technical Documentation

Key Contact

Luca Piazza
Product Manager - Electron Microscopy

Integrated Solutions

Discover DECTRIS ELA® detector that is fully integrated into electron microscopy instruments.

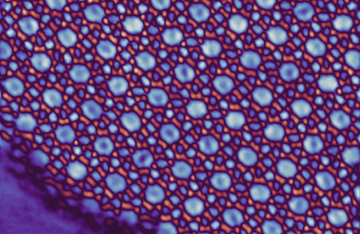

Case Study

In a joint publication in Ultramicroscopy, Nion and DECTRIS tested and characterized DECTRIS ELA® hybrid-pixel electron detector and its application potential.

Publication: Hybrid-pixel Direct Detector for Electron Energy Loss Spectroscopy, Ultramicroscopy Vol. 217, October 2020

Read the article
